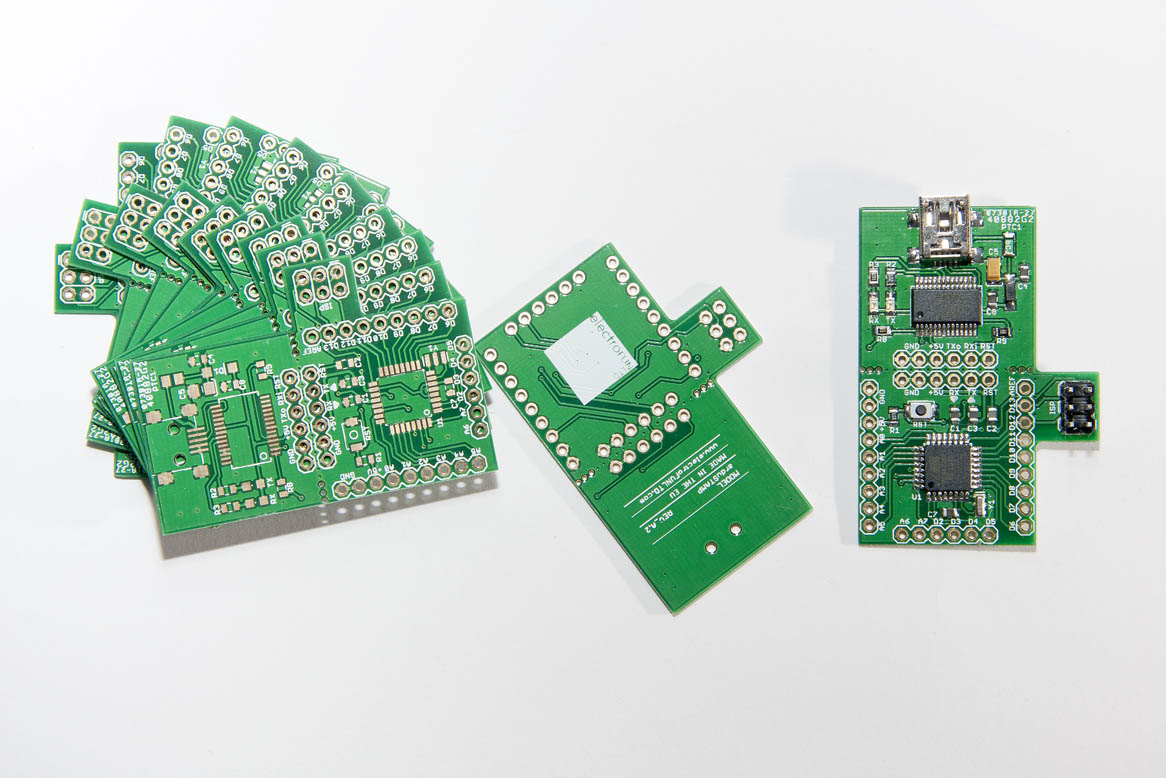

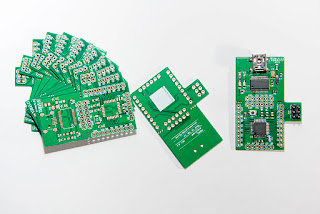

arduSTAMP

It's the arduSTAMP! eletroFUN's minimal design approach to Arduino. It requires a 4.5-5.5V regulated power source or it can be powered off the USB when running at 16MHz or between 1.8V to 4.5V when running at 8MHz. It comes with a bootloader already programmed (select 'Arduino Duemilanove w/ 328' within the Arduino software). It's a great board that will get you up and running quickly. The board can be powered from the USB or from an external regulated 5V supply.

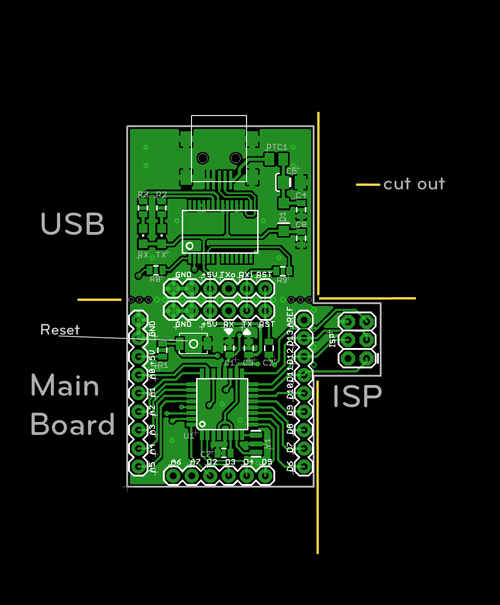

The arduSTAMP is meant for users that wish to prototype something fast and then make it part of their project. If your final product doesn't need the USB to serial interface the Main Board can be separated from the USB interface, so you get two products in one.

arduSTAMP does not come with header connectors populated (only the ISP header) so that you can solder in any connector or wire with any orientation you need.

You can get the arduSTAMP in 4 assembly options:

bare board - only the bare board will be sent.
no USB arduSTAMP - an assemble board without the USB components with no header connectors.
full assembled arduSTAMP - a fully assembled arduStamp without header connectors.
arduSTAMP kit - a bare board and all the components will be sent for you to assemble (only ICSP and serial headers will be sent).

Please read our product description here.
Prices quoted include shipping via regular mail within the EU.

For non EU orders please add a shipping option below.

arduCHIP

The arduCHIP is electroFUN's minimal design approach to a bare bones Arduino compatible board. It requires a 4.5-5.5V regulated power source being the perfect companion for the arduSTAMP. It comes pre-programmed with a bootloader. The serial interface is fully compatible with the USB breakout board of the arduSTAMP or with sparkFun's FTDI basic. The arduCHIP is a compact board that will allow you to have the full power of an Arduino on a very small footprint.
The arduCHIP is meant for users that are familiar with the Arduino environment and are looking for a cost effective bare bones board to use on a constraint space project. If you are not familiar with the Arduino environment we recommend that you first buy the arduSTAMP or an Arduino Duemilanove or One (they are great boards and a very good starting point). arduCHIP does not come with header connectors assembled (only the ISP header and serial header) so that you can solder in any connector with the orientation you need for your application.

You can get the arduCHIP in 2 assembly options:

bare board - only the bare board will be sent.
full assembled arduCHIP - a fully assembled arduChip without header connectors.
arduCHIP kit - a bare board and all the components will be sent for you to assemble (only ICSP and serial headers will be sent).

Please read our product description here.
Prices quoted include shipping via regular mail within the EU.

For non EU orders please add a shipping option below.

Board Assembly Options

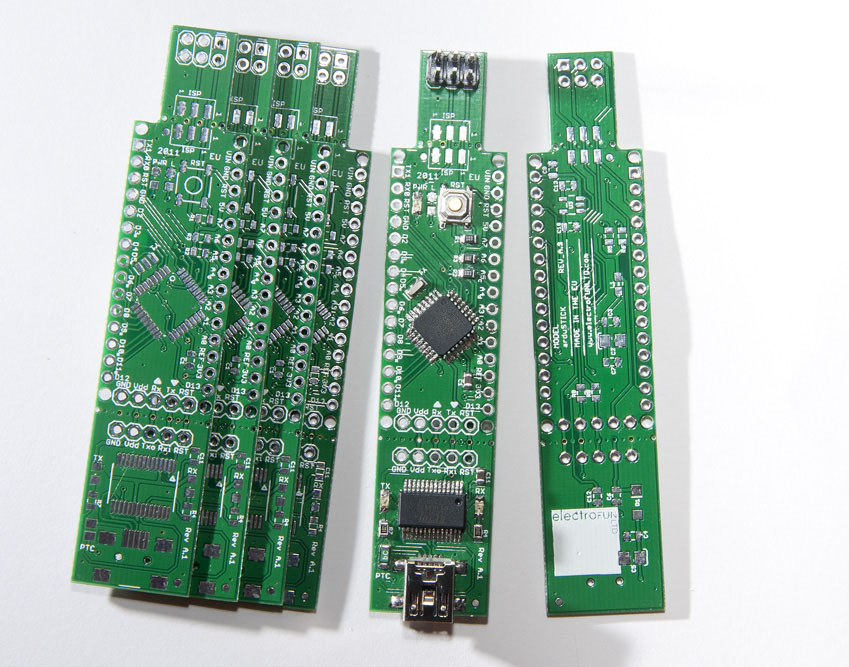

arduSTICK
The arduSTICK is electroFUN's approach to have a cost effective and versatile development board. It is a drop in replacement of the Arduino Nano but without the need to have a permanent USB to serial interface on the board. It is ideal for prototyping, breadboarding, integrating in your final assembly.

It comes with a bootloader already programmed (select 'Arduino Duemilanove w/ 328' within the Arduino software). It's a great board that will get you up and running quickly. The board can be powered from the USB or from an external regulated 5V supply.

The arduSTICK is meant for users that wish to prototype something fast and then make it part of their project. If your final product doesn't need the USB to serial interface the Main Board can be separated from the USB interface, so you get two products in one. It is also a drop in replacement for the Arduino Nano where USB to serial connectivity is only required for the development of the project but not on the final assembly.

arduSTICK does not come with header connectors populated (only the ISP header) so that you can solder in any connector or wire with any orientation you need.

You can get the arduSTICK in 3 assembly options:

bare board - only the bare board will be sent.
no USB - an assemble Main Board without the USB components without header pin connectors apart from the ISP.
fully assembled arduSTICK - a fully assembled arduStick with no header pin connectors apart from the ISP.

Please read our product description here.
Prices quoted include shipping via regular mail within the EU.

For non EU orders please add a shipping option below.

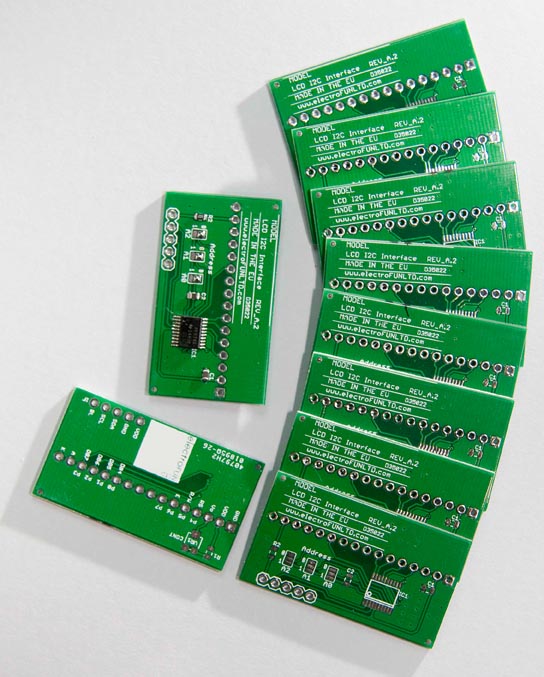

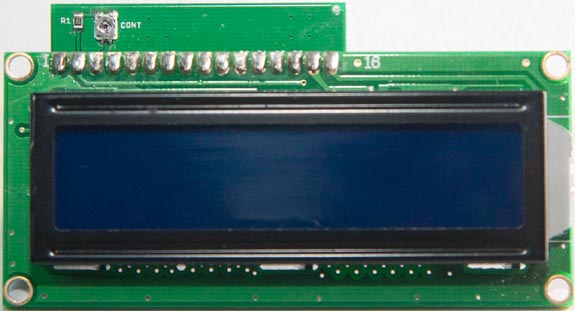

I2C LCD extra IO
Need more pins to control your LCD? Does your project need some extra IOs? The I2CLCDextraIO can control standard character LCDs using just 2 pins through a standard I2C bus. This board has been developed with character LCDs in mind as a means to reduce the pin count required to drive them.
LCDs are very common and a great way to have projects report back visually. However, they need 6, 7 or 10, 11 pins to control them plus an additional pin for the backlight. For some projects, it is not easy to find those additional pins. The LCD backpack (I2CLCDextraIO) is the board for such applications.
You can get the I2C LCD extra IO in 2 assembly options:

bare board - only the bare board will be sent.
fully assembled I2CLCDextraIO - a fully assembled board with I2C headers fitted.
fully assembled I2CLCDextraIO + LCD - fully assembled board with I2C and LCD available for a limite time.

LCD Specs:

LCD Display Mode: STN, Positive, Transflective

Background Color: Deep Blue/ Yellow Green

Driving Method : 1/16 duty, 1/5 bias

Outline Dimension: 80*36*15.8 MAX

Power Supply: 5V

LCD datasheet.

Please read our product description here.

Shipping Options
Free shipping of our boards is included via regular mail within the EU.

Should you wish to have your boards sent urgently or to any other country outside of the EU, please add to your cart one of the shipping options below:
