Product retired

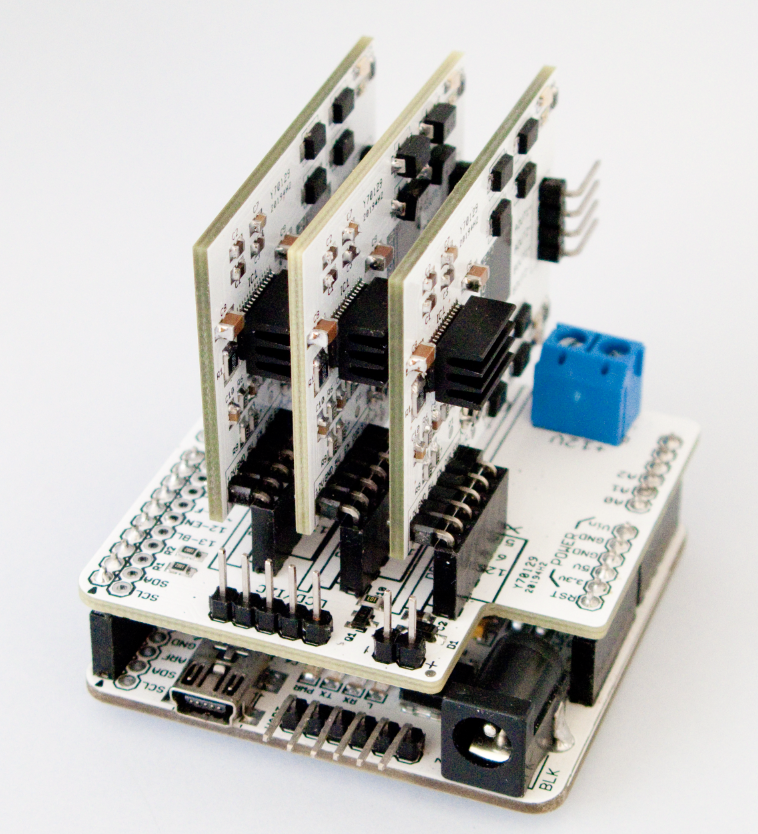

The ELFSHL1 is compact carrier board/shield and when connected to 3 ELFDRV3 makes it the most compact and cost effective solution to drive a CNC machine. Its modular design makes it a versatile, flexible and maintainable solution that can discreetly drive any entry level and semi-professional 3 axis CNC machine. The whole driving solution (controller, shield and driver) will fit in a 60mm x 60mm x 60mm cube.
The ELFSHL1 is compact carrier board/shield and when connected to 3 ELFDRV3 makes it the most compact and cost effective solution to drive a CNC machine. Its modular design makes it a versatile, flexible and maintainable solution that can discreetly drive any entry level and semi-professional 3 axis CNC machine. The whole driving solution (controller, shield and driver) will fit in a 60mm x 60mm x 60mm cube.
Features
- Capable of driving up to 3 ELFDRV1s, ELFDRV2s or ELFDRV3s micro-stepper drivers with indexer.
- On board thermistor based on the LM75B for active thermal control.
- 2.5 A fan driver.
- I2C expansion bus interface to chain other devices such as IO expansion boards, additional thermistors for off board temperature monitoring, LCDs, LED drivers, etc.
- 3 broken out general purpose IOs or analog inputs, user defined.
- +12 V input supply that can power both the mother board/shield and micro-controller.
- Compatible with the vinciDuino, Arduino UNO Rev3 and Arduino Leonardo.
- Breadboard friendly.
Combined with the vinciDuino or any compatible Arduino makes it an ideal and compact solution for driving a CNC machine in a 53mm x 53mm footprint.
Specifications
Dimensions
Size: 53 mm x 53 mm
Weight: 10g
General specifications
Total current drive capability: 8 A
Supply voltage range: 8 V - 24 V
Connectivity:
micro-stepper driver: 3 (ELFDRV1 or ELFDRV2)
Broken out IOs (user defined): 3
I2C bus out: 1
FAN:
Continuous fan current driver: up to 2.5 A
Voltage range: 8 V - 24 V
Thermistor:
Temperature accuracy: +/-2 C (between -25 C and 100 C)
Temperature resolution: 0.125 C
PCB: FR4, 35um
2 layer
white solder resist
Documentation
User Manual and Specs- User manual in PDF - download
- User manual in ePUB for your favorite eBook reader - download
- User manual in iBook for your iPad - download
SW Libraries
- Basic Stepper library - download
- Thermistor library with support for LM75B - download
- New LiquidCrystal Library - download
- Full CNC controller firmware for your CNC machine using our shield fully tested with printrun, replicatorG, repetier host and Txapuzas Tx - download
- The CNC gcode interpreter is in beta but fully operational with Txapuzas Tx, replicatorG and printrun. This library has been inspired by Txapuzas RX gcode interpreter.
